ESPECIFICACIONES

 MODELO

EST. IND. PCM M3/Hr

O.P.E. PCM

O. DE ASPA (mm)

HP

AMP

POLEA MOTRIZ

POLEA IMPULSADA

BANDA

 AXD-16

2000

3315

2110

406

1/20

TRANSMISION DIRECTA

 ------


 AXD-20

4000

6720

5125

508

1/4

5.3

 ------

AX-24

5000
8437

6170

609.5

1/4

5.3

76.2mm x 15.7mm

177.8 mm x 15.7mm

A-41

  AX-30

7000

11855

8995

762

1/2

8.2

63.5mm x 15.7mm

177.8mm x 25.4mm

A-49

 AX-36

10000

16990

12370

914

3/4

10.2

63.5mm x 15.7mm

279.4mm x 25.4mm

A-49

 AX-42

13000

22085

20070

1066.8

1

15.5

63.5mm x 15.7mm

279.4mm x 25.4mm

A-68

 AX-48

18000

30562

24581

1219.2

1

15.5

63.5mm x 15.7mm

279.4mm x 25.4mm

A-74

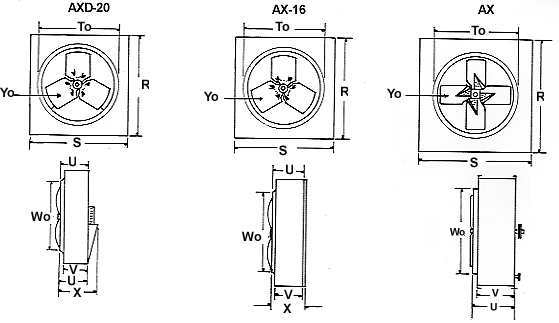

DIMENSIONES

 MODELO

 R

(mm)

S

(mm)

T o

(mm)

 U

(mm)

V

(mm)

W o

(mm)

X

(mm)

Y o

(mm)

 AXD - 16

533.4

533.4

470

104.6

82.5

453.8

114.3

406

AXD - 20

584.2

584.2

501.6

101.6

79.2

501.6

235

508

AX - 24

800

800

647.7

285.7

247

647.7

270

609.5

AX - 30

950.5

950.5

800

286

247

 800

310

762

AX - 36

1100.5

1100.5

950

355

317

950

310

914.4

AX - 42

1257

1257

1110

355

317

1110

310

1067

AX - 48

1438

1438

1270

362

324

1270

310

1220
